4 channels, can collect more spectral information
A variety of spectral band selections, providing a strong database
Support multi-spectral + color RGB simultaneous imaging
1440*1080 HD image resolution
Support software trigger and external trigger mode, easy to integrate into the industrial detection automation system
Real-time image transmission, real-time viewing of calculation results, and abnormal conditions are clear at a glance
High-precision radiation calibration with real-time correction of ambient light radiation, more accurate spectral data acquisition
Domestic production, independent intellectual property rights,independent and controllable

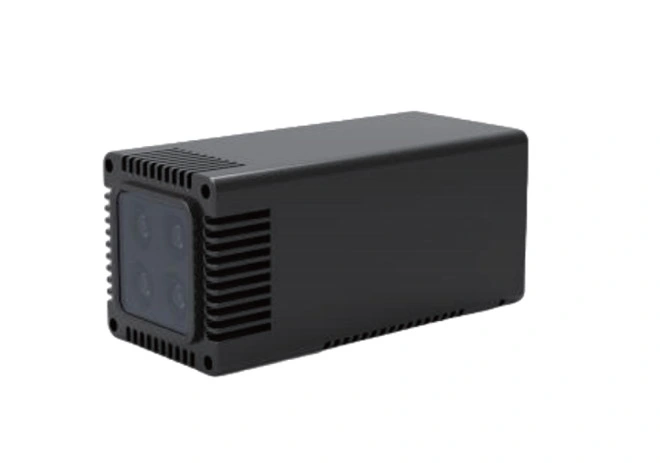

| Product Number | LANO-SP15-20A |
| Multispectral imaging | 3+1RGB |
| Multispectral bands | Default configuration: 450nm, 550nm, 650nm, optional configuration 1: 550nm, 650nm,850nm, optionalconfiguration 2:650nm, 720nm (narrowband),850nm |
| lmage Sensor | 1/2.9 inch CMOs, global shutter,1.55 million pixels |
| lmage Resolution | 1440*1080 |
| Data Depth | 10bit |
| optical lens | Focal length f=5.35mm, aperture F/2.0 |
| Field of view | HFOV:49.8°,VFOV:38.4° |
| Typical width | 11*84m@h=120m |
| Ground Spatial Resolution | 7.74cm@h=120m |
| Acquisition frame rate | 20 frames/second (real time) |
| Spectral lmage Format | IMG(ENVl standard)/TIFF/JPG |
| Device interface | 1x RJ-45 Gigabit Ethernet port, 1x USB3.0,1x HDMI,1x RS232,2x1/0 port |
| Device extension | Can be extended through the interface to support WIFl, external triggers, etc. |
| software support | Dedicated spectrum acquisition control software, providing SDK for secondary development |
| Power supply | DC 12V/2A |
| Power consumption | <Tw |
| weight | 503g |
| Dimensions (WxHxD) | 70mm*70mm*156mm |
| Operating temperature | -20°C to 50℃ |
| Storage temperature | -20°C to 60℃ |
