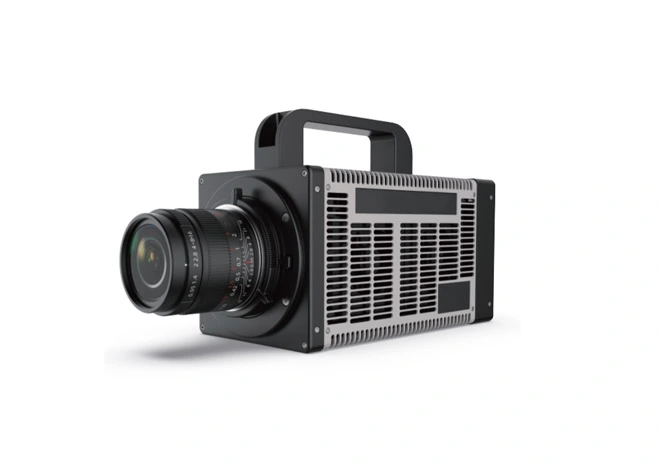

LANO-HSC Series Ultra Data Throughput High Speed Cameras

Massive data throughput
Up to 13,600fps at 1.3M Pixel, Max.1,000,00ofps
Professional broadcast image quality
The highest-end dedicated lSP processing chip in the market, with modules for automatic white balance, colour correction,gamma correction, defogging, noise removal and sharpening, which automatically calculates the current colourtemperature and adjusts the white balance and colour correction parameters
Long time continuous recording
256G high-speed RAM storage supports up to 15s continuous recording of original data
Strong custom development capability
Hardware support to extend the military aerial plug interface, compatible with other supporting equipment, includingcontrol signals, data interaction

Selection Table of LANO-HSC Series Ultra Data Throughput High Speed Cameras

Resolution -Frame Rate-Recording Time
SKU	LANO-HSC1300-13600E	LANO-HSC1300-9300E	LANO-HSC1300-6800E	LANO-HSC4900-2000E
Sensor type	CMOS	CMOS	CMOS	CMOS
Resolution	1280×1024	1280x 1024	1280x 1024	2560x 1920
ISO	67000(M),23000(C)	67000(M),23000(C)	67000(M),23000(C)	22000(M),7000(C)
Shutter	Global shutter	Global shutter	Global shutter	Global shutter
Min. exposure time	100ns	100ns	100ns	100ns
PIV cross-frame	400ns	400ns	400ns	400ns
Exposure	Auto exposure	Auto exposure	Auto exposure	Auto exposure
Ultimate dynamic range	Support	Support	Support	Support

Resolution-Frame Rate-Recording Time
Resolution	LANO-HSC1300-13600E( measured at 256GB )		LANO-HSC1300-930OE( measured at 256GB)		LANO-HSC1300-6800E( measured at 256GB )		LANO-HSC4900-2000E( measured at 256GB)
Resolution	Max Frame Rate fps	Recording time-s	Max Frame Rate fps	Recording time-s	Max Frame Rate fps	Recording time-s	Max Frame Rate fps	Recording time-s
2560×1920	--	--	--	--	--	--	2,057	27.1
1920×1080	--	--	--	--	--	--	3,649	36.2
1280×1024	13,600	16.4	9,300	23.8	6,800	32.7	3,846	54.3
1280×960	14,200	16.4	9,900	23.8	7,100	32.8	4,098	54.4
1280×800	17,200	16.4	11,900	23.8	8.600	32.6	4,926	54.3
1280×720	18,800	16.4	13,100	23.9	9,500	32.6	5,464	54.4
832×600	22,700	25.4	15,800	36.4	11,000	23.2	6,535	83.7
640×600	22,700	32.6	15,800	47.4	11,300	65.3	6,535	108.9
640×480	22,700	30.0	19,600	47.8	14,000	59.4	8,130	109.4
512×256	50,000	43.0	37,000	60.0	25,600	83.9	15,151	137.5
256×256	50,000	85.9	37,000	120.0	25,600	167.7	15,151	274.7
512×128	100,000	44.4	100,000	44.4	52,600	84.4	29,411	141.5
128x128	100,000	176.5	100,000	176.7	52,600	335.7	--	--
512×8	1,000,000	64.7	1,000,000	64.8	500,000	129.5	250,000	258.8
128×8	1,000,000	237.3	1,000,000	237.6	500,000	475.1	--	--

Power
Model	LANO-HSC1300-13600E	LANO-HSC1300-9300E	LANO-HSC1300-6800E	LANO-HSC4900-2000E
ACpower supply	100-240VAC 8owpower adapter included	100-240VAC 8owpower adapter included	100-240VAC 8owpower adapter included	100-24OVAC 8owpoweradapter included
Voltage range	9~16V	9~16V	9~16V	9~16V
Power consumption	≤45W	≤45W	≤45W	≤45W

Mechanical Specifications
Model	LANO-HSC1300-13600E	LANO-HSC1300-9300E	LANO-HSC1300-6800E	LANO-HSC4900-2000E
Lens interface	E	E	E	E
Size W*HxD/mm	170x185 x304(with handle)	170x185 x304(with handle)	170x185 x304(with handle)	170x185 x304(with handle)
Weight(without accessories)/g	≤6350	<6350	≤6350	≤6350
*Mounting holes	Emount: bottom 1/4 in. 2 pcs.M5 threaded holes 4 pcs, 3/8 in.2pcs	Emount: bottom 1/4 in. 2 pcs.M5 threaded holes 4 pcs. 3/8 in.2pcs	Emount: bottom 1/4 in. 2 pcs.M5 threaded holes 4 pcs, 3/8 in.2pcs	Emount: bottom 1/4 in. 2 pcs.M5 threaded holes 4 pcs, 3/8 in.2pcs


Cooling	Fan cooling	Fan cooling	Fan cooling	Fan cooling
