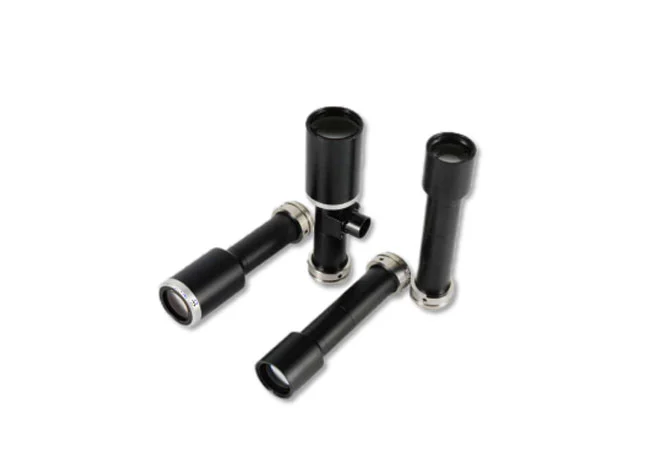

65mm High Resolution Telecentric Len

  • Adopting a far-field design from the object side to ensure measurement accuracy

  • Utilizing high magnification and large aperture to achieve ultra-high resolution, up to 210lp/mm

  • The working distance of the entire series is 65mm

  • Can be compatible with industrial cameras with a maximum of 2/3-inch megapixel or higher C-interface

  • Can be applied to high-precision workpiece defect detection

Contact Us
  • 65mm High Resolution Telecentric Len
  • 65mm High Resolution Telecentric Len
PRODUCT CATEGORIES

Selection Table of 65mm High Resolution Telecentric Len

Model No.Magnific ation (X)Working Distance (mm)Object View (mm)Image Field (mm)Resolution (μm)Aperture (f/#)NATelecent ricity
(°)		Field Of View (mm)Optical DistortionMTF30（lp/ mm）Depth Of Field (mm)O/IMountWhether CoaxialDimension (mm)Weight (kg)
（H×V）
LANO-HT05X65-230C0.565221112.8F9.60.0260.252/3"
1/2"
1/3"		16.9
12.8
9.6		14.1
9.6
7.2		<0.008%1104.3187.6CYESφ36x102.1/
LANO-HT05X65-230C0.565221112.7F9.60.0260.262/3"
1/2"
1/3"		16.9
12.8
9.6		14.1
9.6
7.2		<0.001%1104.2184.6CYESφ36x102.1/
LANO- HT08X65-2300.86513.8118.3F100.040.082/3"
1/2"
1/3"		10.6
8.0
6.0		8.8
6.0
4.5		<0.086%1001.7180.8CNOφ30x 98.3/
LANO- HT08X65-230C0.86513.8118.3F100.040.072/3"
1/2"
1/3"		10.6
8.0
6.0		8.8
6.0
4.5		<0.083%1001.7183.9CYESφ30x 101.4/
LANO- HT08X65-2300.865//8.4F100.04≤ 0.12/3"
1/1.8 "
1/2"		10.55
9.21
7.68		8.84
6.15
6.15		≤ 0.1%/1.25%/CNOφ26x 89.7150
LANO- HT10X65-11016517.617.64.6F70.072<0.211.1"
2/3"
1/2"		14.2
8.5
6.4		10.4
7.1
4.8		<0.007%＞0.3@1450.79207.9CNOφ39x 125.4/
LANO- HT10X65-110C16517.617.64.6F70.072<0.191.1"
2/3"
1/2"		14.2
8.5
6.4		10.4
7.1
4.8		<0.008%＞0.3@1450.79212.1CYESφ39x 129.6/
LANO- HT10X65-23016511117.3F11.10.0450.062/3"
1/2"
1/3"		8.5
6.4
4.8		7.1
4.8
3.6		<0.038%901.2190.1CNOφ30x 107.6/
LANO- HT10X65-230C16511117.3F11.10.0450.062/3"
1/2"
1/3"		8.5
6.4
4.8		7.1
4.8
3.6		<0.039%901.2193.1CYESφ30x 110.6/
LANO- HT10X65A-230165//7.5F110.04545≤ 0.12/3"
1/1.8"
1/2"		8.44
7.37
6.14		7.07
4.92
4.92		≤ 0.1%/0.8/CNOφ26x 79.9150
LANO- HT10X65A- 230C165//7.5F110.04545≤ 0.12/3"
1/1.8"
1/2"		8.44
7.37
6.14		7.07
4.92
4.92		≤ 0.1%/0.8/CYESφ26x 79.9150
LANO-HT15X65- 1201.565//7F17.30.04335≤ 0.11/2"
1/3"
1/4"		4.09
3.2
2.13		3.28
2.4
1.6		≤ 0.1%/0.55/CNOφ16x 74.6100
LANO-HT15X65- 120C1.565//7F17.30.04335≤ 0.11/2"
1/3"
1/4"		4.09
3.2
2.13		3.28
2.4
1.6		≤ 0.1%/0.55/CYESφ16x 74.6100
LANO-HT15X65- 2301.5657.3115.2F11.90.063<0.152/3"
1/2"
1/3"		5.6
4.3
3.2		4.7
3.2
2.4		<0.105%850.55168.6CYESφ25x 86.1/
LANO-HT15X65- 230C1.5657.3115.2F11.90.063<0.152/3"
1/2"
1/3"		5.6
4.3
3.2		4.7
3.2
2.4		<0.105%850.55168.6CNOφ25x 86.1/
LANO-HT20X65- 1102658.817.62.4-32.6F7.1- 98.90.01~0.138<0.211.1"
2/3"
1/2"		7.1
4.2
3.2		5.2
3.5
2.4		0.10%＞0.3@135-10.50.20-2.8232.9CNOφ44x 150.4/
LANO-HT20X65- 110C2658.817.62.4-32.6F7.1- 98.90.01~0.138<0.211.1"
2/3"
1/2"		7.1
4.2
3.2		5.2
3.5
2.4		0.10%＞0.3@135-10.50.20-2.8232.9CYESφ44x 150.4/
LANO-HT20X65-230265//4.5F13.20.07576≤ 0.12/3"
1/1.8"
1/2"		3.54
3.69
3.07		4.22
2.46
2.46		≤ 0.1%/0.3/CNOφ26x 80150
LANO-HT20X65-230C265//4.5F13.20.07576≤ 0.12/3"
1/1.8"
1/2"		3.54
3.69
3.07		4.22
2.46
2.46		≤ 0.1%/0.3/CYESφ26x 80150
LANO-HT21X65-2302.14655.1114.5F14.40.073<0.112/3"
1/2"
1/3"		3.9
3.0
2.2		3.3
2.2
1.7		<0.041%700.35170.7CYESφ25x 88.2/
LANO-HT21X65-230C2.14655.1114.5F14.40.073<0.112/3"
1/2"
1/3"		3.9
3.0
2.2		3.3
2.2
1.7		<0.041%700.35170.7CNOφ25x 88.2/
LANO- HT30X65- 1103655.917.62.1-32.3F9.5- 147.30.01~0.157<0.211.1"
2/3"
1/2"		4.7
2.8
2.1		3.5
4.2
1.6		0.09%＞0.3@105-70.12-1.8240.9CNOφ44x 158.4/
LANO- HT30X65- 110C3655.917.62.1-32.3F9.5- 147.30.01~0.157<0.211.1"
2/3"
1/2"		4.7
2.8
2.1		3.5
4.2
1.6		0.09%＞0.3@105-70.12-1.8240.9CYESφ44x 158.4/
LANO-HT30X65-2303653.7113.5F15.70.094<0.152/3"
1/2"
1/3"		2.8
2.1
1.6		2.4
1.6
1.2		<0.038%650.19182.0CYESφ25x 99.5/
LANO- HT30X65-230C3653.7113.5F15.70.094<0.152/3"
1/2"
1/3"		2.8
2.1
1.6		2.4
1.6
1.2		<0.038%650.19182.0CNOφ25x 99.5/
LANO- HT40X65-1104654.417.62.0-32.3F11.8-194.90.01~0.165<0.161.1"
2/3"
1/2"		3.6
2.1
1.6		2.6
1.8
1.2		0.09%＞0.3@85-50.08-1.4256.9CNOφ44x 174.4/
LANO- HT40X65-110C4654.417.62.0-32.3F11.8-194.90.01~0.165<0.161.1"
2/3"
1/2"		3.6
2.1
1.6		2.6
1.8
1.2		0.09%＞0.3@85-50.08-1.4256.9CYESφ44x 174.4/
LANO- HT40X65-2304652.8112.9F17.80.114<0.112/3"
1/2"
1/3"		2.1
1.6
1.2		1.8
1.2
0.9		<0.064%550.11185.6CYESφ25x 103.1/
LANO- HT40X65-230C4652.8112.9F17.80.114<0.112/3"
1/2"
1/3"		2.1
1.6
1.2		1.8
1.2
0.9		<0.064%550.11185.6CNOφ25x 103.1/
LANO- HT60X65-2306651.8112.9F26.60.114<0.152/3"
1/2"
1/3"		1.4
1.1
0.8		1.2
0.8
0.6		<0.028%350.08211.8CNOφ25x 129.3/
LANO- HT60X65-230C6651.8112.9F26.60.114<0.152/3"
1/2"
1/3"		1.4
1.1
0.8		1.2
0.8
0.6		<0.028%350.08211.8CYESφ25x 129.3/
